Overview#

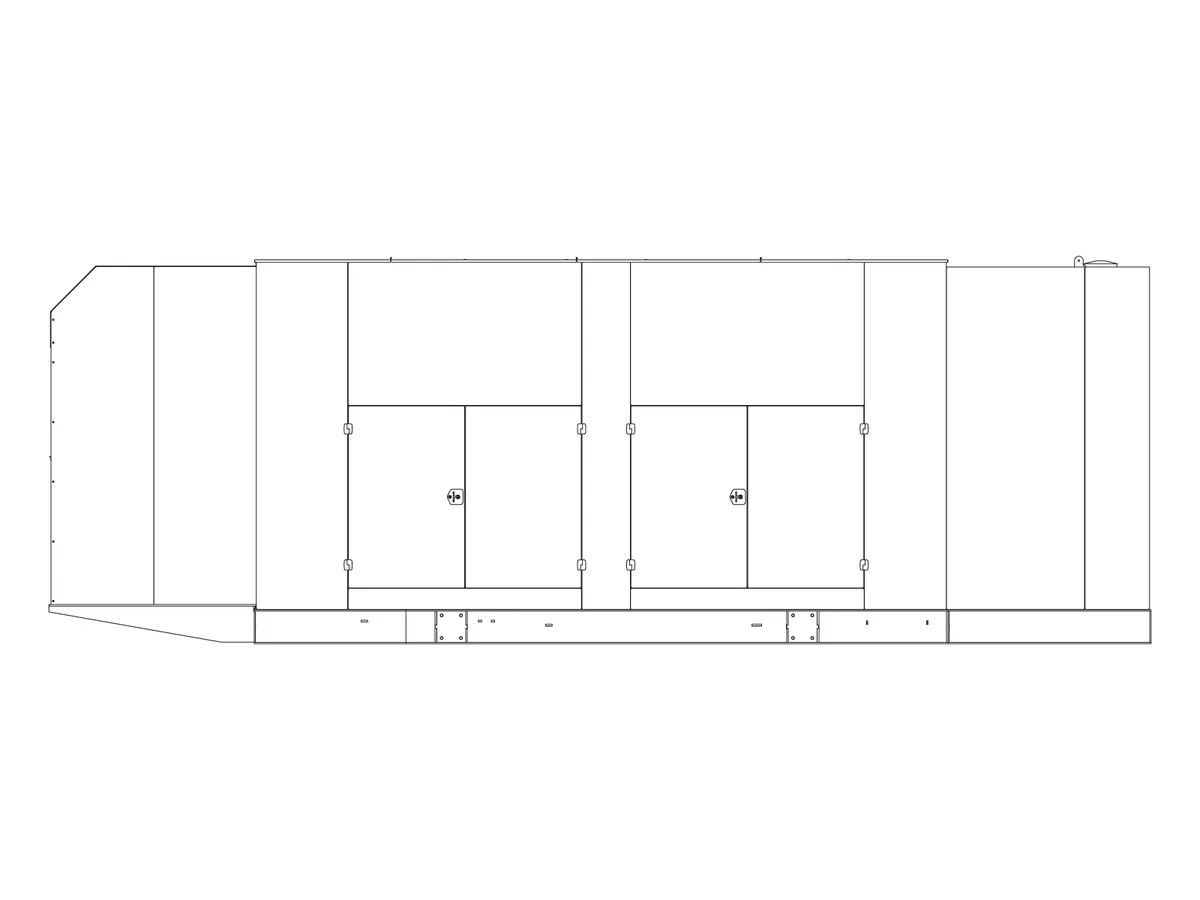

The Hipower HJW-410 is a 410 kW diesel standby generator — the largest model in the HJW Industrial series — manufactured at Hipower Systems' Olathe, Kansas facility. It is powered by a John Deere 6090HF484 family engine, a 9.0-liter six-cylinder turbocharged diesel tuned to the highest output in the HJW range, paired with a Stamford HCI 444 series alternator. EPA Tier 3 certified, the set carries UL 2200 and CSA listings.
The HJW-410 is a three-phase-only generator set available in 277/480V, 120/208V, and 347/600V configurations. At 410 kW standby, it serves large industrial and critical facility applications: major hospital emergency power systems, enterprise data centers, large manufacturing operations, and multi-building commercial campuses requiring the highest output the HJW platform provides.
John Deere Engine Platform#
The HJW-410 uses the highest-output configuration of the John Deere 6090HF484 engine family — a 9.0-liter inline six-cylinder turbocharged diesel with HPCR fuel injection. The 6090 platform powers the top five output levels in the HJW range (225 kW through 410 kW), with each step representing progressively higher turbocharger and fuel calibration settings. At 410 kW generator duty, the engine operates in a demanding thermal regime that rewards disciplined preventive maintenance.
The John Deere 6090 engine has comprehensive North American dealer coverage. California operators can access authorized service and factory-level diagnostic support from John Deere commercial dealers throughout the state. Parts availability for the 6090 — including high-pressure common rail injector components, turbocharger assemblies, and cooling system parts — is strong across the US market.
Hipower Manufacturing#
Hipower Systems assembles the HJW-410 at its Olathe, Kansas facility with the same factory processes applied across the HJW line: computer-aided design, full factory load testing, and test certificate documentation on every unit. The skid uses heavy-duty steel construction with anti-vibration isolation. Sound-attenuated enclosure options are available and are strongly recommended at the 410 kW output level for noise management on commercial sites.
The HJW series meets NFPA 110 Level 1 requirements with appropriate accessories. UL 2200 listing and CSA certification are standard, and the set complies with ISO 8528-5, NFPA 99, and NFPA 110.
Service and Maintenance#
At 410 kW, disciplined maintenance is essential for reliable standby performance. The John Deere 6090 requires oil and filter changes every 250 hours or 12 months. At the 410 kW output level, fuel consumption is high — annual fuel polishing of supply tanks is strongly recommended to prevent contamination in the HPCR injection system. Fuel filter replacement annually is a minimum; 500-hour intervals should be observed for higher-runtime units. Air cleaner inspection is due at 500 hours.
Stamford HCI 444 alternator maintenance includes connection inspection, insulation resistance testing every 2-3 years, and AVR function verification. Starting battery systems require float charging and annual condition testing. Load bank testing every 1-3 years is recommended to verify full-load performance and exercise the generator under load.
Our Service Experience#
OnPoint Generators services large industrial generator sets throughout the San Francisco Bay Area and Northern California. At 410 kW, the HJW-410 is suited for the most demanding critical facility standby applications — hospital systems, enterprise data centers, and large industrial operations where generator failure during a grid outage has serious operational consequences.
The John Deere 6090 engine is well-supported by California dealers, and our service team is equipped for full commissioning, annual preventive maintenance, and emergency repair on HJW series sets in this output class. Contact OnPoint for a maintenance program proposal, load bank testing, or NFPA 110 compliance documentation support.
