Overview#

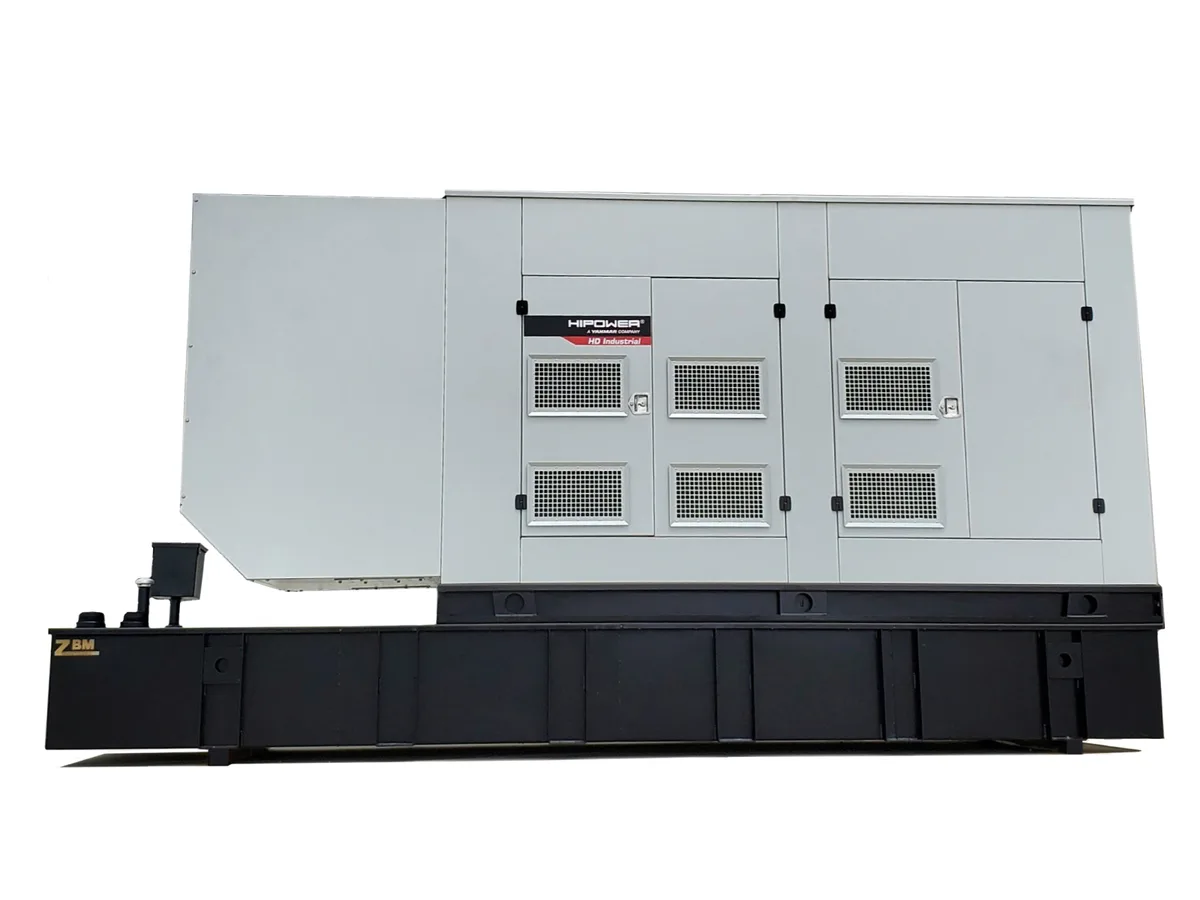

The Hipower HJW-275 is a 275 kW diesel standby generator from the HJW Industrial series, manufactured at Hipower Systems' Olathe, Kansas facility. It is powered by a John Deere 6090HF484-315, a 9.0-liter six-cylinder turbocharged diesel producing 422 horsepower at 1,800 rpm, paired with a Stamford HCI 444 E alternator. EPA Tier 3 certified, the set carries UL 2200 and CSA listings.
The HJW-275 is a three-phase-only generator set, available in 277/480V, 120/208V, and 347/600V configurations. At 275 kW, it is positioned for industrial standby applications, large commercial buildings, hospitals, critical-facility data infrastructure, and utility-scale pump stations requiring 500+ amps at 480V.
John Deere Engine Platform#
The 6090HF484-315 is a high-output member of John Deere's 6090 engine family — a 9.0-liter (549 cubic inch) inline six-cylinder diesel that is among the most capable engines in the HJW product range. At 422 horsepower, this variant is tuned for demanding generator-set duty at the 275 kW class. The 6090 uses turbocharged induction with a robust fuel system appropriate for extended standby and continuous prime applications.
The 6090 engine family has comprehensive North American dealer coverage and is well understood by authorized John Deere service centers. Parts support for the 6090 platform is strong and expected to remain so for many years.
Hipower Manufacturing#
Hipower Systems assembles and tests every HJW-275 at its Kansas facility, producing full-load test certificates for each unit. The generator set skid uses heavy-duty steel construction with anti-vibration isolation. Sound-attenuated enclosure options are available for installations requiring reduced noise emissions. The set meets NFPA 110 Level 1 requirements when properly accessorized and is designed to ISO 8528-5, NFPA 99, and NFPA 110 compliance standards.
Service and Maintenance#
The John Deere 6090 in the HJW-275 requires 250-hour or annual oil and filter changes. The 9.0-liter displacement results in higher oil volume — plan for the larger service cost versus the smaller 4045-based models. Fuel filter replacement at 500 hours or annually is important; HPCR-injection engines are sensitive to fuel contamination and require clean, dry No. 2 ULSD. Annual fuel polishing is strongly recommended for generators drawing from bulk storage tanks.
The Stamford HCI 444 E alternator requires periodic connection inspection and insulation resistance testing. Starting battery maintenance — including float charging between exercises — is essential at this output class.
Our Service Experience#
OnPoint Generators services large standby generator sets throughout the Bay Area and Northern California. At 275 kW, the HJW-275 is appropriate for hospital emergency power systems, critical data infrastructure, large manufacturing facilities, and multi-building commercial campuses. The John Deere 6090 engine is well supported throughout California, and Stamford HCI 444 alternator service is available through authorized distributors. Contact OnPoint to discuss commissioning, annual maintenance programs, or load bank testing for NFPA 110 compliance.
