Caterpillar · Cat CG Series (Gas)

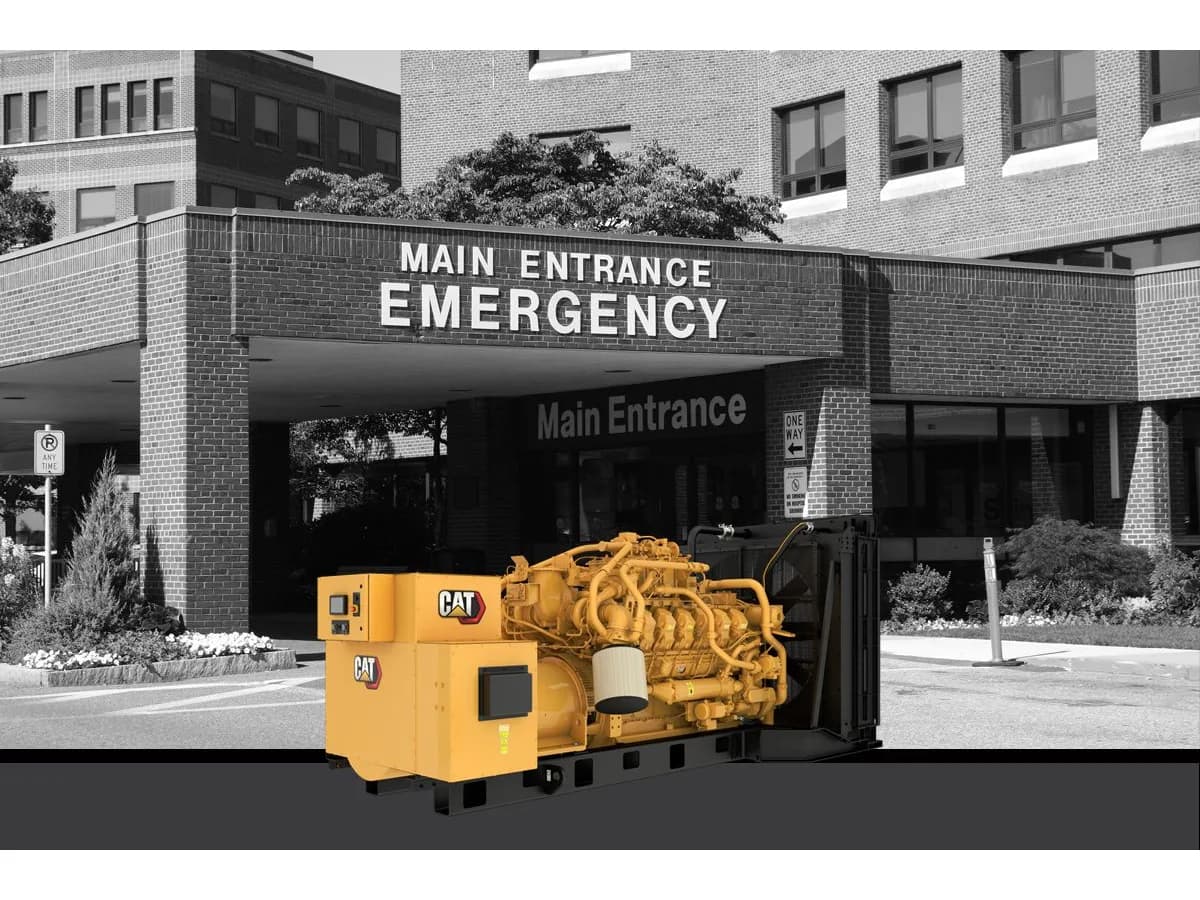

Cat CG132B-12

600 kW standby · Natural Gas · Liquid-cooled

600 kW continuous-duty natural gas generator set. CG132B 12-cylinder engine for cogeneration, combined heat and power, and industrial prime power.

Standby power
600 kW / 600 kW prime
Voltage options
277/480V, 346/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Caterpillar CG132B-12
EPA / Emissions
EPA Stationary Spark Ignition
cogenerationcombined-heat-powercontinuousprimeManufacturingbiogas
Configure & QuoteDownload spec sheet

Overview#

The Cat CG132B-12 is a 600 kW continuous-duty natural gas generator set built on the CG132B 12-cylinder gas engine. Adding 50% more cylinders over the 8-cylinder sibling, the CG132B-12 scales the same proven industrial gas engine technology to serve larger facilities and industrial cogeneration plants.

The V12 configuration delivers 600 kW of continuous electrical output alongside substantial recoverable thermal energy from jacket water and exhaust heat recovery systems. For facilities with combined electrical and thermal loads in the 500-700 kW range, the CG132B-12 is often the right size to cover both demands from a single machine.

Cogeneration economics at 600 kW#

At 600 kW scale, CHP economics are compelling for facilities with year-round thermal loads. A 600 kW CHP system running at 8,000 hours per year displaces a significant quantity of grid electricity and boiler fuel simultaneously. The break-even analysis depends on local electricity and gas tariffs, but 600 kW CHP installations in commercial and industrial settings typically achieve payback periods of 4-8 years in markets with active time-of-use pricing or capacity charges.

Fuel flexibility#

The CG132B-12 inherits the platform's fuel flexibility:

  • Pipeline natural gas -- primary fuel with full rated output
  • Biogas -- landfill gas and digester gas for renewable energy recovery
  • Hydrogen blends -- up to approximately 25% H2 by volume
  • Low-BTU applications -- with engineering review and appropriate derating

Applications#

The 600 kW output scale serves:

  • Industrial cogeneration -- manufacturing facilities with process steam or hot water needs
  • Wastewater treatment plants -- digester gas recovery with on-site power generation
  • Large commercial campuses -- universities, data centers, and healthcare campuses with CHP master plans
  • District energy -- central plant configurations serving multiple buildings

Our service experience#

At 600 kW continuous duty, a formal asset management program is appropriate. Oil analysis, vibration monitoring, and cylinder performance trending are standard practice on industrial gas engines at this scale. Establish gas quality baselines at commissioning -- Wobbe index variation and fuel moisture are the most common causes of combustion instability issues on continuous-duty gas engines.

Engineering specifications

Physical

Length
192 in
Width
64 in
Height
84 in
Wet weight
13,000 lb

Ready to order this model?

Configure your Cat CG132B-12

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cat CG132B-12

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

6,300,000 BTU/hr≈ 6300.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Cat CG132B-12 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 2000 hours or 6 months
Coolant change
Every 8000 hours
Air filter
Every 2000 hours
Major overhaul
≈ 60,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Spark plugsMisfiring, derating, increased emissions4,000+moderate
PrechamberCombustion instability, detonation16,000+moderate
TurbochargerReduced power, bearing wear30,000+moderate
Ignition coilsCylinder misfiring8,000+minor

Frequently Asked Questions

What is the power rating of the Cat CG132B-12?
The Cat CG132B-12 is rated at 600 kW continuous/prime on natural gas at 60 Hz, 3-phase. The 12-cylinder V configuration delivers 50% more power than the 8-cylinder CG132B-8 using the same proven cylinder bore and stroke. This is a continuous-duty rating -- the unit is designed for unlimited-hour operation in cogeneration and industrial prime power roles.
How does the CG132B-12 compare to the CG132B-8?
Both are built on the same CG132B cylinder module, with the 12-cylinder variant producing 600 kW vs 400 kW for the 8-cylinder. The CG132B-12 uses a V12 configuration vs the in-line 8, which affects footprint and installation clearance requirements. For CHP systems where load growth is anticipated, the CG132B-12 provides headroom without requiring a second unit.
Is the CG132B-12 suitable for biogas applications?
Yes. The CG132B platform supports biogas fuels including landfill gas and anaerobic digester gas. Biogas applications require gas quality analysis and may require fuel conditioning (moisture removal, H2S scrubbing) before the generator inlet. Cat application engineers can size the fuel conditioning system based on your site gas analysis.

Similar models

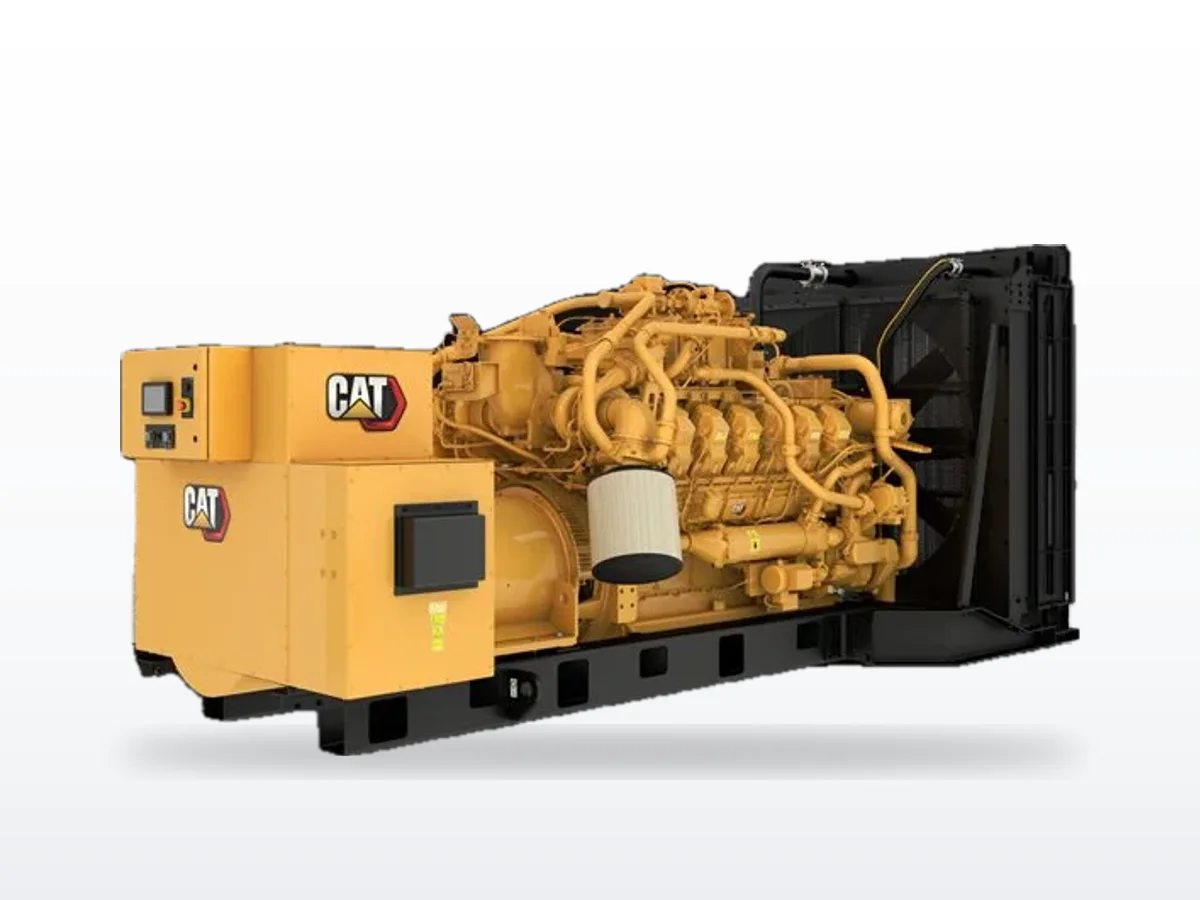

Caterpillar Cat G3512 750 kW liquid-cooled standby generator

Caterpillar

Cat G3512

750 kW natural gas with CAT G3512 V-12. Continuous/prime rated. Biogas capable. Best resale in gas class.

750 kW standby · Natural Gas · Liquid-cooled

750 kW natural gas generator with Cat G3512 turbocharged V-12 engine. Continuous and prime-rated platform for cogeneration, biogas, and distributed power.

3-phasecontinuous-powerprime-power
Caterpillar Caterpillar G3412 512 kW liquid-cooled standby generator

Caterpillar

Caterpillar G3412

512 kW natural gas with CAT G3412 V-12. No diesel infrastructure needed. EMCP 4 controller. ~200 US dealers.

512 kW standby · Natural Gas · Liquid-cooled

The Caterpillar G3412 is a 512 kW standby natural gas generator built on the 27L V12 G3412C engine. EPA Subpart JJJJ certified. EMCP 4 controller. Dry weight 14,330 lb. Complete specs from OEM sheet.

EPA Stationary Spark Ignition3-phasehospital-largecampus

Caterpillar

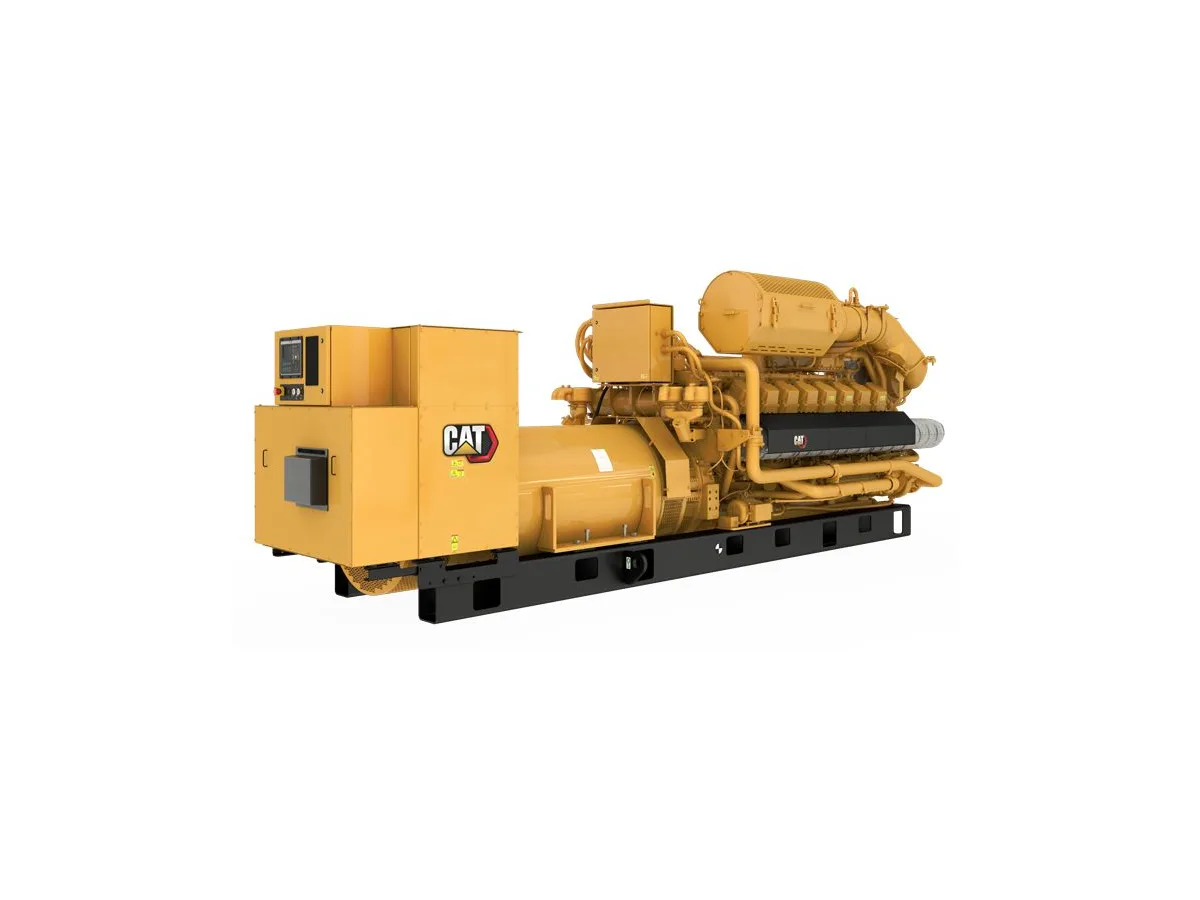

Cat CG132B-16
