12/24VDC SCR engine start battery charger. 10A or 20A, 4-rate charging with temperature compensation, Battery Fault alarm. MTBF over 1 million hours. The rugged workhorse for mission-critical gensets.

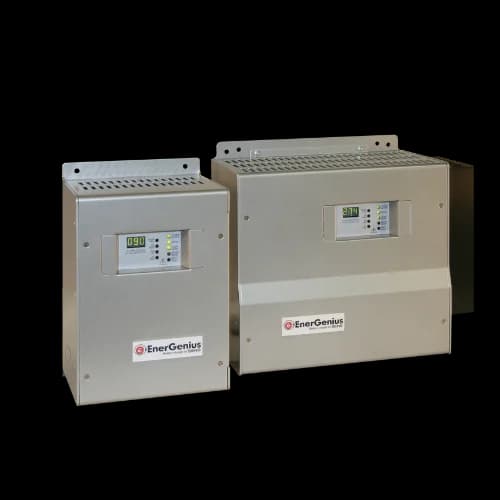

The SENS EnerGenius NRG is an SCR-based engine start battery charger built for maximum reliability in mission-critical generator applications. Where the MicroGenius 2 leads with advanced features and networking, the NRG leads with brute-force reliability — an observed MTBF exceeding 1.2 million hours, meaning a statistical expectation of over 130 years between failures.
The NRG uses 4-rate charging with automatic temperature compensation, covering 12V and 24V systems at 10A or 20A. Its signature feature is the Battery Fault alarm — a continuous monitoring system that detects high-resistance cables, corroded terminals, and open cells before they cause a no-start event.
The EnerGenius NRG is the charger we find on generators that have been running for 20+ years without a battery-related failure. Its simplicity is its strength — there is almost nothing to fail. The most common service action is checking the temperature compensation probe connection during annual PM. In our territory, NRGs are common on water/wastewater generators and remote telecom sites where a failed charger means a truck roll to a difficult location. The Battery Fault alarm has saved several of our customers from discovering a dead starting battery during an actual outage.
Frequently Asked Questions
What is the difference between the EnerGenius NRG and MicroGenius 2?
The NRG uses SCR (Silicon Controlled Rectifier) technology — simpler, more rugged, and with an observed MTBF exceeding 1.2 million hours. The MicroGenius 2 uses advanced switchmode technology with more features (Modbus, parallel operation, wider voltage range). Choose the NRG when maximum ruggedness and simplicity matter more than networking and advanced diagnostics. Choose the MicroGenius 2 when you need networking, higher current, or wider voltage range.
What is the Battery Fault alarm?
An industry-first feature from SENS. The NRG continuously monitors the battery circuit and detects problems like high-resistance cables, corroded connections, and open cells. When a fault is detected, the charger signals an alarm — alerting maintenance before the generator fails to start during an outage. Most conventional chargers only monitor output voltage, missing the cable and connection issues that cause the majority of starting failures.
What battery types does the NRG support?
All common lead-acid types (flooded, VRLA, AGM) and nickel-cadmium. The charger is field-adaptable — no special programming needed for different battery chemistries. Temperature compensation adjusts float voltage automatically based on ambient temperature.
Why would I choose SCR over switchmode?
SCR chargers have fewer electronic components, which means fewer failure points. The NRG's observed MTBF of 1.2 million hours is roughly 5x the MicroGenius 2. For installations where the charger will operate in extreme environments (high temperature, high vibration, corrosive atmosphere) and networking is not required, SCR is the more reliable choice.
